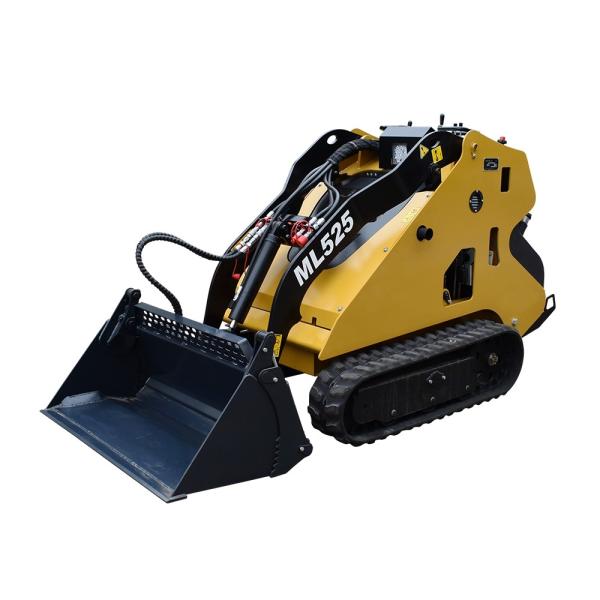

25HP Tracked Mini Skid Steer loader ML525 with EPA KUBOTA Engine

Factory showing

1: Specially customized main valve, generation combination, diversion function, boom floating function, mechanical operation is reliable, easy to repair and maintain.

2: Using the American PERMCO high-pressure gear pump, the flow can be combined and divided through the special main valve, and the system pressure is 21Mpa.

3: The US DANFOSS low-speed but torque wheel drive motor is adopted to strengthen the self-rescue function of the machine in muddy working conditions.

4: Equipped with two sets of assistive device control valves, it is convenient to expand auxiliary devices, and the flow rate can be adjusted.

5: The flow rate of auxiliary equipment can be adjusted between 0-45L/min

6: Adopt construction machinery testing methods and conduct strict thermal balance tests to ensure continuous, safe and reliable operation of the machine when the environment is 35°C.

7: Ergonomic optimization design is adopted, the climbing ability is calibrated at 16°, and the test test is 22°. The center of gravity of the whole machine is low, and the slope operation is safe and reliable.

8: Two sets of auxiliary equipment oil circuit and unloading circuit are equipped as standard, and more dual-function auxiliary equipment can be expanded without additional cost for auxiliary equipment control valve group.

Description

With a powerful Perkins diesel engine, the new ML525 model is a "little giant" that maneuvers easily in tight places and handles tough construction, agriculture and landscaping challenges with ease.

Machine

Operating weight 1.069 kg

Tip capacity 2.100 / 953 kg

Operating capacity 175 / 79.5 kg

Travel speed 3.5mph (5.6km/h)

Operation

Steering and Drive:direction and speed controlled by single joystick

Lifting and tilt: Raise/lower/and dump controlled by a dual-axis joyctick.

Transmission type: crawler type

Hydraulic

Hydraulic flow 54.8 l/min

Working hydrostatic pressure 175 bar

Hydraulic tank capacity 53 l

Standard Buckets

Standard buckets – width / volume-

Standard bucket 1.060 mm / 0,36 m³

4 in 1 bucket 1.100 mm / 0,45 m³

Dimensions

Overall Operating Height 1,524mm

Overall Height 1,524 mm

Ground Clearance to Chassis 169 mm

Overall Length 2, 589 mm w/42" bucket

Overall Length 1,956 mm (without bucket)

Wheelbase 940 mm

Rollback at Ground 27°

Dump Angle 37°

Overall Width 1,040 mm

Bucket Width 1,060mm

Engine

Manufacturer :KUBOTA

Diesel Engine type: 3 cyliner liquid-cooled

Power output max.25 hp /

Rated speed :3000 rpm/min

fuel capacity 9.0 gal / 47 L

Air cleaner :Heavy-duty dual element

Configurations

Attachments options

Packing by box ;LCL shipping or packing in container.

Shandong Weiman Machinery Co,.Ltd was founded in 2012 by Mr David Song who worked in VOLVO-SDLG Group Since 2004. Weiman dedicated to becoming a comprehensive supplier of well-known Chinese machineries as there spare parts too.

Weiman as “We Service Man” using as skid steer loader brand .Since 2013 .Weiman Joint in  Linyi Meilian  specializing in the research, development, manufacture and sales of micro-machines and attachments. Has been successfully developed and put into the market in batches HY380. ML525, ML525L, ML25Y,ML525W, ML526SLR, ML530, ML530Y, ML550, and ML550K and other track-type, tire-type "Weiman" brand skid steer loaders and tree diggers and other complete machine products. It is exported to more than 40 countries or regions such as the United States, Canada, Australia, New Zealand, Southeast Asia, Northern Europe, Eastern Europe, and South Africa. The newly developed tree moving machine is also being tested in the domestic market with excellent performance. In order to adapt to the market, the newly developed telescopic arm type new model is also being debugged and will be exported to the North American market soon.

The Skid steer loader include 23HP/25HP 30HP/50HP Etc

• US Briggs& Stratton gasoline engine
• Japan Kuboat D1105 EPA engine
• China Xinchai engine

Attachments for Bobcat ,Case ,Cat etc

Skid steer loaders are equipped with nearly a hundred kinds of self-produced work aids, which are widely used in demolition, road work, snow and debris removal, excavation, trenching, grading and backfilling, loading, pruning, landscaping, agricultural work, and working scenarios such as material handling.
